12  分组数据分析实战

在这一部分，将以 (Gao et al. 2021)论文中的数据分析为例，展示分组数据分析和可视化的重复性研究。首先，我们简单介绍一下论文的研究背景、方法和主要结果。然后，使用原始数据进行可重复研究，通过复现论文中的图片，展示分组数据分析和可视化的重复性研究。

12.1 论文研究概述

12.1.1 研究背景

  • 细菌共培养（coculture）广泛用于微生物生态学研究
  • 初始接种比例是关键实验参数，影响微生物群落结构与功能
  • 研究目标：探究初始接种比例如何调控共培养系统的最终结构与代谢能力

12.1.2 研究方法

  • 选取 大肠杆菌 (E. coli K-12) 与 荧光假单胞菌 (P. putida KT2440) 作为共培养模型
  • 在 71 种不同碳源条件下培养，初始比例从 1:1000 到 1000:1
  • 通过比色法 (Biolog GEN III) 评估碳源利用率 (CUE)
  • 通过 qPCR 测定共培养中两种菌的相对丰度

12.1.3 主要结果

12.1.3.1 初始接种比例影响最终菌群结构

  • 在 59/71 种碳源 中，不同初始比例导致最终比例显著不同
  • 但最终比例 并非完全由初始比例决定
  • 碳源偏好性 对最终比例影响较大

12.1.3.2 初始比例调控共培养的代谢能力

  • 1:1 和 1000:1 共培养 在 14 种碳源上表现出 更高的代谢能力
  • 1:1000 共培养 代谢能力较弱，与单菌培养相似
  • 可能机制：物种间 代谢共生 (metabolic coupling) 仅在特定初始比例下被触发

12.1.3.3 初始比例和碳源共同决定菌间相互作用

  • 1:1000 共培养：主要为 负相互作用（62%）
  • 1:1 和 1000:1 共培养：更易形成 正相互作用（46% 和 30%）
  • 代谢互补性 可能依赖于足够数量的两种菌共存

12.1.4 研究结论

  • 初始接种比例不仅影响共培养实验的 可重复性，还可能 改变微生物相互作用模式
  • 碳源可调节初始比例对最终群落结构和功能的影响
  • 该研究为微生物群落的可控构建提供了新的思路

12.2 数据准备

论文的原始数据及分析代码都在 GitHub 上。首先，使用 Git 命令将代码克隆到本地：

git clone https://github.com/gaospecial/ratio.git --depth 1

12.3 加载所需的R包

library(tidyverse)
library(cowplot)
library(ggpubr)
library(pheatmap)
library(RColorBrewer)
library(vegan)
library(reshape2)
library(corrplot)
library(kableExtra)
library(agricolae)

# 设置默认主题
theme_set(theme_bw())

12.4 数据处理

原始数据存储在 data 文件夹中。数据主要来自两个实验:一个是使用 eco-plate 的 BIOLOG 标准测定,另一个是物种特异性的 qPCR 测定。原始数据以格式化的形式提供。

biolog <- read_csv("ratio/data/biolog.csv")
qPCR_data <- read_csv("ratio/data/qPCR.csv")
mono_data <- read_csv("ratio/data/mono.csv")
head(biolog)
# A tibble: 6 × 5
  ratio0 plate carbon_id  A590  A750
  <chr>  <dbl>     <dbl> <dbl> <dbl>
1 equal      1         1 0.191 0.138
2 equal      1         2 0.344 0.181
3 equal      1         3 1.37  0.561
4 equal      1         4 1.25  0.778
5 equal      1         5 0.191 0.137
6 equal      1         6 0.259 0.142
head(qPCR_data)
# A tibble: 6 × 6
  ratio0 plate carbon_id         EC         PP   ratio1
  <chr>  <dbl>     <dbl>      <dbl>      <dbl>    <dbl>
1 less       1        10    177416. 175245243. 0.00101
2 less       1        11    239521. 148368132. 0.00161
3 less       1        12  29837437. 142288704. 0.210
4 less       1        13    645563. 162324668. 0.00398
5 less       1        14     52481. 142197847. 0.000369
6 less       1        15 164023932. 156667034. 1.05
head(mono_data)
# A tibble: 6 × 4
  plate carbon_id        EC         PP
  <dbl>     <dbl>     <dbl>      <dbl>
1     1         1 10455221. 198817093.
2     1         2 59042727.  11468217.
3     1         3 54167912.  69902664.
4     1         4 61019235.  97434837.
5     1         5 14130781.  71788638.
6     1         6  5894491.  70394115.

数据列说明:

  • ratio0: 初始比例,表示培养物的名称。“none”、“less”、“equal”、“more”、“all” 分别代表铜绿假单胞菌单培养、1:1000(大肠杆菌/铜绿假单胞菌,下同)、1:1、1000:1 共培养和大肠杆菌单培养。
  • plate: 实验重复。
  • A590: BIOLOG 工作站报告的 590 nm 吸光度,在本研究中作为碳源利用效率(CUE)的测量值。
  • A750: BIOLOG 工作站报告的 750 nm 吸光度。
  • carbon_id: 碳源的编号。从1-72,其中1是阴性对照。下面的变量 carbon_name 显示了每种碳源的名称。
  • EC: 共培养中大肠杆菌的数量
  • PP: 共培养中铜绿假单胞菌的数量
carbon_name <- read_csv("ratio/data/carbon.csv")
head(carbon_name)
# A tibble: 6 × 2
  carbon_id carbon_source
      <dbl> <chr>
1         2 Dextrin
2         3 D-Maltose
3         4 D-Trehalose
4         5 D-Cellobiose
5         6 Gentiobiosse
6         7 Sucrose

大肠杆菌和铜绿假单胞菌的 qPCR 引物具有特异性(见Figure 12.1)。

Figure 12.1: （原文图 S1）物种特异性引物的特异性。PCR 实验分别使用大肠杆菌(EC)和铜绿假单胞菌(PP)特异性引物及其基因组 DNA 进行。

12.5 原始数据处理

qPCR 定量数据处理:

mono_data <- mono_data  %>% melt(id.vars=c("plate","carbon_id"),variable.name ="Target.Name",value.name="Quantity_mono")

cocu_data <-qPCR_data %>% select(plate,carbon_id,ratio0,EC,PP) %>% melt(id.vars=c("plate","carbon_id","ratio0"),variable.name ="Target.Name",value.name="Quantity_cocu")

data_all <- merge(mono_data, cocu_data, by = c("carbon_id","Target.Name","plate"),all=T) %>% filter(carbon_id!="1")

通过减去每个平板中阴性对照的值来标准化 A590:

qPCR_data <- qPCR_data %>%
   mutate(ratio0 = factor(ratio0, levels = c("less","equal","more")))

# 标准化
biolog_24h <- biolog %>%
  mutate(ratio0 = factor(ratio0, levels = c("none","less","equal","more","all"))) %>%
  group_by(plate,ratio0) %>%
  mutate(A590=A590-A590[carbon_id==1],A750=A750-A750[carbon_id==1]) %>%   # 将阴性对照设为零
  filter(carbon_id!=1) %>%
  ungroup()
biolog_mono_24h <- biolog_24h %>%
  filter(ratio0 %in% c("none","all")) %>%
  mutate(species=factor(ratio0,levels = c("all","none"),labels = c("E. coli","P. putida"))) %>%
  dplyr::select(-ratio0)
biolog_coculture_24h <- biolog_24h %>%
  filter(ratio0 %in% c("less","equal","more")) %>%
  mutate(ratio0 = factor(ratio0, levels = c("less","equal","more")))

12.6 本研究使用的碳源

本研究使用了71种不同的碳源。首先,我们需要将它们分组或聚类成不同的子组。在本研究中,我们使用了两种方法来实现这一点。

12.6.1 碳源聚类

首先,通过所有培养物中的 A590 值对碳源进行聚类。这就是我们所说的”使用组”。使用R中的 hclust() 方法生成了三个使用组,分别命名为 U1、U2 和 U3。

M_A590_24h <- biolog_24h %>% mutate(sample=paste(ratio0,plate,sep="-")) %>%
  dplyr::select(sample,carbon_id,A590) %>%
  spread(key=sample,value=A590) %>%
  as.data.frame() %>%
  tibble::column_to_rownames(var="carbon_id")
k3 <- cutree(hclust(dist(M_A590_24h)),k=3)
carbon_group <-  data.frame(usage=k3) %>%
  rownames_to_column(var="carbon_id") %>%
  mutate(carbon_id=as.numeric(carbon_id)) %>%
  mutate(usage=paste("U",usage,sep=""))

carbon_name <- left_join(carbon_name, carbon_group)

12.6.2 定义碳源偏好性

其次,通过比较大肠杆菌和铜绿假单胞菌单培养中的 A590 值来确定碳源偏好性。

biolog_mono_A590_24h <- biolog_mono_24h %>%
  dplyr::select(plate,carbon_id,species,A590) %>%
  spread(species,A590)

PP_prefered <- biolog_mono_A590_24h %>%
  group_by(carbon_id) %>%
  summarise(p=t.test(`P. putida`,`E. coli`,alternative = "greater")$p.value) %>%
  filter(p<0.05)
EC_prefered <- biolog_mono_A590_24h %>%
  group_by(carbon_id) %>%
  summarise(p=t.test(`P. putida`,`E. coli`,alternative = "less")$p.value) %>%
  filter(p<0.05)

carbon_prefer <- data.frame("carbon_id"=carbon_name$carbon_id,
                            "prefer"="None",
                            stringsAsFactors = F)
carbon_prefer[carbon_prefer$carbon_id %in% EC_prefered$carbon_id,"prefer"] <- "EC"
carbon_prefer[carbon_prefer$carbon_id %in% PP_prefered$carbon_id,"prefer"] <- "PP"

carbon_name <- left_join(carbon_name, carbon_prefer)

在大肠杆菌偏好的碳源中,大肠杆菌的 CUE 在统计学上显著高于铜绿假单胞菌,而在铜绿假单胞菌偏好的碳源中,铜绿假单胞菌的 CUE 在统计学上显著高于大肠杆菌。

更多信息请参见Figure 12.7。

12.6.3 碳源汇总

Table 12.1列出了本研究使用的所有71种碳源。

carbon_name %>%
  left_join(carbon_prefer) |>
  kableExtra::kable()
Table 12.1: 表 S1. 本研究使用的71种碳源列表
carbon_id carbon_source usage prefer
2 Dextrin U1 EC
3 D-Maltose U2 EC
4 D-Trehalose U2 EC
5 D-Cellobiose U1 None
6 Gentiobiosse U1 EC
7 Sucrose U1 None
8 D-Turanose U1 None
9 Stachyose U1 None
10 D-Raffinose U1 None
11 α-D-Lactose U1 None
12 D-Melibiose U1 EC
13 β-Methyl-D-Glucoside U1 None
14 D-Salicin U1 None
15 N-Acetyl-D-Glucosamine U2 None
16 N-Acetyl-β-Dmannosamine U1 None
17 N-Acetyl-D-Galactosamine U1 None
18 N-AcetylNeuraminic Acid U2 EC
19 α-D-Glucose U3 PP
20 D-Mannose U2 PP
21 D-Fructose U2 EC
22 D-Galactose U1 EC
23 3-MethylGlucose U1 None
24 D-Fucose U1 PP
25 L-Fucose U2 EC
26 L-Rhamnose U1 EC
27 Inosine U2 None
28 D-Sorbitol U1 EC
29 D-Mannitol U2 EC
30 D-Arabitol U1 None
31 myo-Inositol U1 None
32 Glycerol U1 None
33 D-Glucose-6-PO4 U2 EC
34 D-Fructose-6-PO4 U2 EC
35 D-Aspartic Acid U1 None
36 D-Serine U2 EC
37 Gelatin U1 None
38 Glycyl-L-Prolin U1 EC
39 L-Alanine U3 PP
40 L-Arginine U3 PP
41 L-Aspartic Acid U3 PP
42 L-Glutamic U3 PP
43 L-Histidine U3 PP
44 L-Pyroglutamic U3 PP
45 L-Serine U1 None
46 Pectin U1 EC
47 D-Galacturonic Acid U3 PP
48 L-Galactonic Acid Lactone U2 EC
49 D-Gluconic U2 PP
50 D-Glucuronic U3 PP
51 Glucuronamid U1 PP
52 Mucic Acid U3 PP
53 Quinic Acid U3 PP
54 D-Saccharic U3 PP
55 p-Hydroxy-Phenylacetic Acid U1 PP
56 Methyl Pyruvate U1 PP
57 D-Lactic Acid Methyl Ester U1 None
58 L-Lactic Acid U3 PP
59 Citric Acid U3 PP
60 α-Keto-Glutaric Acid U1 PP
61 D-Malic Acid U1 None
62 L-Malic Acid U3 PP
63 Bromo-Succinic U1 PP
64 Tween 40 U1 None
65 y-Amino-ButryricAcid U3 PP
66 α-Hydroxy-ButyricAcid U1 None
67 β-Hydroxy-D,L-ButyricAcid U1 PP
68 α-Keto-ButyricAcid U1 None
69 Acetoacetic Acid U1 PP
70 Propionic Acid U1 PP
71 Acetic Acid U1 None
72 Formic Acid U1 None

12.7 定义社会互作

社会互作模型如Figure 12.2所示。

更多信息请参见Figure 12.7。

Figure 12.2: （原文图 1）本研究中使用的互作模型。(A) 菌株 A 和菌株 B 在单培养中的表型(CUE)分别为 CUE_A_ 和 CUE_B_。假设两个菌株在共培养中的 CUE 不相等,且 CUE_A_ 高于 CUE_B_。(B) 当菌株 A 和 B 共培养时,共培养的 CUE 通常可分为三种情况。首先,如果 CUE > CUE_A_,则解释为正互作模式(诱导),因为共培养增加了总体能力。相反,如果 CUE < CUE_B_,则解释为负互作模式(抑制)。此外,如果 CUE 在 CUE_A_ 和 CUE_B_ 之间,则如方法中所述应用额外的假设检验方法来揭示互作模式(C 和 D)。(C)显示了正互作的示例。测得的共培养 CUE 呈正态分布,均值为 μ1,菌株 A 和 B 的相对丰度分别为 A% 和 B%。使用单培养 CUE_A_ 和 CUE_B_ 及其相对丰度,我们可以得到计算的 CUE,它也呈正态分布,均值为 μ2。如果 μ1 显著大于 μ2,我们将共培养定义为正互作模式。(D)显示了负互作的示例。尽管测得的共培养 CUE 等于(C)中的值,但由于菌株 A 和 B 的相对丰度不同,我们得到了负互作模式。

根据这个模型,我们可以得到每种培养物在特定碳源和初始比例下的互作模式。

ratio1 <- qPCR_data %>% filter(ratio0 %in% c("less","equal","more")) %>%
  complete(ratio0,carbon_id,plate) %>%
  group_by(ratio0,carbon_id) %>%
  dplyr::select(ratio0,plate,carbon_id,ratio1) %>%
  mutate(ratio1_mean=mean(ratio1,na.rm = T)) %>%
  mutate(ratio1=ifelse(is.na(ratio1),ratio1_mean,ratio1)) %>%
  dplyr::select(-ratio1_mean)

mono_A590 <- biolog_mono_24h %>%
  group_by(carbon_id,species) %>%
  summarise(A590=mean(A590)) %>%
  spread(key="species",value="A590")

A590_caculated <- left_join(ratio1,mono_A590) %>%
  mutate(A590_cac=(`P. putida`+ratio1*`E. coli`)/(1+ratio1))

social <- biolog_coculture_24h %>% dplyr::select(plate,carbon_id,ratio0,A590) %>%
  left_join(A590_caculated) %>%
  group_by(carbon_id,ratio0) %>%
  mutate(p_pos=t.test(x=A590,y=A590_cac,alternative = "greater")$p.value,
            p_neg=t.test(x=A590,y=A590_cac,alternative = "less")$p.value) %>%
  mutate(social_type=ifelse(
    p_pos<0.05,"+",
    ifelse(p_neg<0.05,"-","unresolved"))
    ) %>%
  ungroup() %>%
  dplyr::select(carbon_id,ratio0,social_type,p_pos,p_neg) %>%
  unique() %>%
  mutate(ratio0=factor(ratio0,levels = c("less","equal","more")))

table(social$social_type) %>% barplot(col=c("blue","red","grey"))

最终,我们得到了70个负互作、59个正互作和84个未解析的互作模式。

基于单培养和共培养两种菌的吸光度来定义社会互作。

social_qpcr <- data_all %>%
  group_by(carbon_id,Target.Name,ratio0) %>%
  summarise(p_pos=t.test(x=log10(Quantity_cocu),y=log10(Quantity_mono),alternative = "greater")$p.value,
            p_neg=t.test(x=log10(Quantity_cocu),y=log10(Quantity_mono),alternative = "less")$p.value) %>%
  mutate(social_type=ifelse(
    p_pos<0.05,"+",
    ifelse(p_neg<0.05,"-","unresolved"))
    ) %>% ungroup() %>%
  mutate(ratio0=factor(ratio0,levels = c("less","equal","more")))

table(social_qpcr$social_type) %>% barplot(col=c("blue","red","grey"))

12.8 数据探索

现在我们有了多个参数,包括初始比例(ratio0)和最终比例(ratio1)、共培养中大肠杆菌和铜绿假单胞菌的数量(EC和PP)、CUE(A590)、碳源对大肠杆菌和铜绿假单胞菌的偏好性,以及如Figure 12.2所述计算的社会互作模式(social_type)。

我们将所有这些数据合并到R中的一个数据框中,并进行如下统计分析。

merged <- left_join(biolog_coculture_24h,qPCR_data) %>%
  left_join(social) %>%
  left_join(carbon_name) %>%
  filter(!is.na(ratio1))

包含基于绝对密度定义的社会行为的总数据:

social_qpcr <- social_qpcr %>% select(social_type,carbon_id,ratio0)

merged_qpcr <- qPCR_data %>%
  left_join(social_qpcr) %>%
  left_join(carbon_name) %>%
  filter(!is.na(ratio1)) %>% mutate(social_type=factor(social_type,levels = c('unresolved','+','-'))) %>% mutate(prefer=factor(prefer,levels = c('none','EC','PP')))
merged_qpcr$EC <- log10(merged_qpcr$EC)
merged_qpcr$PP <- log10(merged_qpcr$PP)

12.8.1 数据标准化

运行几个分析需要数据呈正态分布,因此,我们探索了合并数据中观察数据的正态性。根据数据值的偏度,我们用选定的方法转换原始数据。标准化后,可以看到所有关键变量大致符合正态分布。

merged <- merged %>% filter(ratio0 %in% c("less","equal","more"))

par(mfrow=c(3,4))

hist(merged$EC)
qqnorm(merged$EC)
hist(log10(merged$EC))
qqnorm(log10(merged$EC))

hist(merged$PP)
qqnorm(merged$PP)
hist(log10(merged$PP))
qqnorm(log10(merged$PP))

hist(merged$ratio1)
qqnorm(merged$ratio1)
hist(log10(merged$ratio1))
qqnorm(log10(merged$ratio1))
Figure 12.3

因此,我们对大肠杆菌(EC)和铜绿假单胞菌(PP)的数量进行对数转换,对A590值进行平方根转换。

merged <- merged  %>%
  # mutate_at(c("A590"),sqrt) %>%
  mutate_at(c("EC","PP","ratio1"),log10)

此外,我们优化了分组变量的参考水平。例如,初始比例的基准水平设置为”equal“,即大肠杆菌和铜绿假单胞菌的1:1。social_type的基准水平是”unresolved“,usage的基准水平是”U1“,prefer的基准水平是”None“。

merged$ratio0 <- relevel(merged$ratio0,"equal")

merged$social_type <- as_factor(merged$social_type)
merged$social_type <- relevel(merged$social_type,"unresolved")

merged$usage <- as_factor(merged$usage)
merged$usage <- relevel(merged$usage, "U1")

merged$prefer <- as_factor(merged$prefer)
merged$prefer <- relevel(merged$prefer,"None")

12.8.2 CUE、细胞数量和最终比例的相关性

下图显示了三个因变量之间的相关性,这些变量是CUE(A590)、大肠杆菌(EC)和铜绿假单胞菌(PP)的数量,以及最终比例(ratio1)。CUE与铜绿假单胞菌的数量的相关性比与大肠杆菌数量的相关性更强,尽管两种相关性都很显著。此外,最终比例与大肠杆菌数量呈正相关,与铜绿假单胞菌数量呈负相关。另外,大肠杆菌和铜绿假单胞菌之间也存在相关性。

library(corrplot)
mat <- merged[c("A590","EC","PP","ratio1")]
res <- cor.mtest(mat, conf.level=0.95)
cor <- cor(mat)
corrplot(cor, type = "upper", sig.level = c(.001, .01, .05), pch.cex = .9, insig = "label_sig",
         p.mat = res$p,
         addCoef.col = "grey80",
         diag = FALSE)
Figure 12.4: 变量之间的相关性。

12.8.3 多元线性回归

我们使用多元线性回归来探索输入变量和输出变量之间的相关性。输入变量包括初始比例(ratio0)、碳源(按碳源偏好性(prefer)或使用组(usage)进一步聚类)。输出变量包括CUE(A590)、大肠杆菌(EC)和铜绿假单胞菌(PP)的数量,以及社会互作模式(social_type)。

data <- merged[,c("ratio0","usage","prefer","A590","EC","PP","ratio1","social_type")]

首先,对碳源利用效率(CUE,即A590)与初始比例、碳源使用组、碳源偏好性进行回归。回归模型结果显示,根据调整后的R方(0.6782,p < 2.2e-16),可以解释68%的因变量变异。显著影响CUE(A590)的因素从强到弱依次是:碳源使用组(与U1碳源相比)、初始比例(ratio0,与1:1共培养相比)、互作类型(social_type+,与未解析互作模式相比)和碳源偏好性(与非偏好碳源相比)。此外,当其他参数受控时,将初始比例从1:1增加到1000:1或从1:1降低到1:1000,都会显著降低CUE。线性模型总结如下。

model <- lm(A590~ ratio0 + usage + prefer, data = data)
summary(model)

Call:
lm(formula = A590 ~ ratio0 + usage + prefer, data = data)

Residuals:
     Min       1Q   Median       3Q      Max
-0.64818 -0.16779  0.00678  0.11771  1.33998

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  0.21820    0.02503   8.717  < 2e-16 ***
ratio0less  -0.33896    0.02686 -12.618  < 2e-16 ***
ratio0more  -0.11341    0.02689  -4.218 2.88e-05 ***
usageU2      0.61723    0.03131  19.716  < 2e-16 ***
usageU3      0.57853    0.03487  16.589  < 2e-16 ***
preferEC     0.07031    0.03078   2.285   0.0227 *
preferPP     0.15645    0.03180   4.920 1.14e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.248 on 560 degrees of freedom
Multiple R-squared:  0.6816,    Adjusted R-squared:  0.6782
F-statistic: 199.8 on 6 and 560 DF,  p-value: < 2.2e-16

其次,研究了最终比例(ratio1)与输入变量之间的关系。该模型解释了64%的输入变量方差(调整后的R方 = 0.6389,p值 < 2.2e-16)。结果表明,最终比例与所有变量都显著相关。当其他参数受控时,大肠杆菌偏好的碳源(preferEC)是影响最终比例最重要的正向因素,其次是使用组U2(usageU2)。相比之下,ratio0less、usageU3、preferPP和ratio0more是从强到弱的负向影响因素。

model <- lm(ratio1 ~ ratio0 + usage + prefer, data = data)
summary(model)

Call:
lm(formula = ratio1 ~ ratio0 + usage + prefer, data = data)

Residuals:
     Min       1Q   Median       3Q      Max
-1.82699 -0.32735 -0.00437  0.28300  2.04303

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept) -1.26415    0.05038 -25.094  < 2e-16 ***
ratio0less  -1.07556    0.05407 -19.894  < 2e-16 ***
ratio0more  -0.12509    0.05412  -2.311   0.0212 *
usageU2      0.31661    0.06301   5.025 6.78e-07 ***
usageU3     -0.37956    0.07019  -5.408 9.47e-08 ***
preferEC     0.53330    0.06194   8.610  < 2e-16 ***
preferPP    -0.16508    0.06400  -2.579   0.0102 *
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.499 on 560 degrees of freedom
Multiple R-squared:  0.6427,    Adjusted R-squared:  0.6389
F-statistic: 167.9 on 6 and 560 DF,  p-value: < 2.2e-16

同样,我们研究了铜绿假单胞菌(或大肠杆菌)的数量与输入变量之间的关系。

如下所示,该模型解释了59%的输入变量方差(R方 = 0.5904,p < 2.2e-16)。我们发现共培养中铜绿假单胞菌的数量从强到弱显著地与碳源和初始比例相关。值得注意的是,碳源使用组对CUE的影响比偏好性更强。有趣的是,当其他参数受控时,初始接种中大肠杆菌较多(more,1000:1)有助于增加铜绿假单胞菌的最终数量(与1:1初始比例相比)。相反,当其他参数受控时,初始接种中大肠杆菌较少(less,1:1000)会降低铜绿假单胞菌的最终数量(与1:1初始比例相比)。

model <- lm(PP~ ratio0 + usage + prefer, data = data)
summary(model)

Call:
lm(formula = PP ~ ratio0 + usage + prefer, data = data)

Residuals:
     Min       1Q   Median       3Q      Max
-0.70041 -0.12984  0.00254  0.13517  0.68474

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  8.27027    0.02282 362.394  < 2e-16 ***
ratio0less  -0.06862    0.02449  -2.802  0.00526 **
ratio0more   0.05048    0.02452   2.059  0.03995 *
usageU2      0.36134    0.02854  12.660  < 2e-16 ***
usageU3      0.51540    0.03180  16.210  < 2e-16 ***
preferEC    -0.02260    0.02806  -0.805  0.42096
preferPP     0.14206    0.02899   4.900 1.26e-06 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.2261 on 560 degrees of freedom
Multiple R-squared:  0.5947,    Adjusted R-squared:  0.5904
F-statistic:   137 on 6 and 560 DF,  p-value: < 2.2e-16

该模型解释了70%的输入变量方差(R方 = 0.7047,p < 2.2e-16)。我们发现大肠杆菌的数量与初始比例呈负相关,而与碳源使用组U2(usageU2)、偏好碳源(preferEC)呈正相关。这些结果表明生态位条件是影响大肠杆菌数量的主要挑战。

model <- lm(EC~ ratio0 + usage + prefer, data = data)
summary(model)

Call:
lm(formula = EC ~ ratio0 + usage + prefer, data = data)

Residuals:
     Min       1Q   Median       3Q      Max
-1.83058 -0.26505 -0.01877  0.25207  1.67502

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  7.00611    0.04422 158.448   <2e-16 ***
ratio0less  -1.14418    0.04745 -24.111   <2e-16 ***
ratio0more  -0.07461    0.04750  -1.571   0.1168
usageU2      0.67795    0.05530  12.259   <2e-16 ***
usageU3      0.13584    0.06160   2.205   0.0279 *
preferEC     0.51070    0.05436   9.394   <2e-16 ***
preferPP    -0.02301    0.05618  -0.410   0.6822
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.438 on 560 degrees of freedom
Multiple R-squared:  0.7078,    Adjusted R-squared:  0.7047
F-statistic: 226.1 on 6 and 560 DF,  p-value: < 2.2e-16

最后,我们使用多项式逻辑回归来研究影响社会互作的因素。

model <- nnet::multinom(social_type ~ ratio0 + usage + prefer, data = data)
# weights:  24 (14 variable)
initial  value 622.913168
iter  10 value 406.053003
iter  20 value 400.407045
final  value 400.397415
converged
summary(model)
Call:
nnet::multinom(formula = social_type ~ ratio0 + usage + prefer,
    data = data)

Coefficients:
  (Intercept) ratio0less ratio0more   usageU2    usageU3   preferEC   preferPP
+ -0.95563691  -4.610907  -1.730681  2.558865 -0.7874184  3.0731151  1.4921352
- -0.06021649   1.118536  -1.511092 -1.567289  0.2229073 -0.4540912 -0.1812898

Std. Errors:
  (Intercept) ratio0less ratio0more   usageU2   usageU3  preferEC  preferPP
+   0.3351764  0.6170528  0.3383025 0.4632859 0.4500019 0.4316674 0.4307093
-   0.2545723  0.2911163  0.3208524 0.4530683 0.3646688 0.3775650 0.3361113

Residual Deviance: 800.7948
AIC: 828.7948

在比较正互作与未解析互作时,我们得到如下模型:

\[ ln(+/unresolved)= -0.96 - 4.61 * ratio0less - 1.73 * ratio0more + \\ 2.56* usageU2 - 0.79 * usageU3 + 3.07 * preferEC + 1.49 * preferPP \]

在所有输入变量中,usageU2(与usageU1相比)和preferEC(与prefernone相比)对正互作的影响最大,且都具有统计学显著性(见下文)。

在比较负互作与未解析互作时,我们得到如下模型:

\[ ln(-/unresolved) = -0.06 + 1.12 * ratio0less - 1.51 * ratio0more - \\ 1.57 * usageU2 + 0.22 * usageU3 - 0.45 * preferEC - 0.18 * preferPP \]

从这个模型中,我们了解到usageU2(与U1碳源相比)是影响负互作最重要的因素。其他显著因素是ratio0more、ratio0less和preferEC(见下文)。

rstatix::tidy(model) %>%
  mutate(sig = cut(p.value, breaks = c(0,0.001,0.01,0.05,1),labels = c("***","**", "*", ""), include.lowest = TRUE)) %>%
  mutate_at(c("estimate","std.error","statistic"), round, digits = 3) %>%
  mutate_at("p.value", formatC, format = "e", digits = 1) %>%
  kable()
y.level term estimate std.error statistic p.value sig
+ (Intercept) -0.956 0.335 -2.851 4.4e-03 **
+ ratio0less -4.611 0.617 -7.472 7.9e-14 ***
+ ratio0more -1.731 0.338 -5.116 3.1e-07 ***
+ usageU2 2.559 0.463 5.523 3.3e-08 ***
+ usageU3 -0.787 0.450 -1.750 8.0e-02
+ preferEC 3.073 0.432 7.119 1.1e-12 ***
+ preferPP 1.492 0.431 3.464 5.3e-04 ***
- (Intercept) -0.060 0.255 -0.237 8.1e-01
- ratio0less 1.119 0.291 3.842 1.2e-04 ***
- ratio0more -1.511 0.321 -4.710 2.5e-06 ***
- usageU2 -1.567 0.453 -3.459 5.4e-04 ***
- usageU3 0.223 0.365 0.611 5.4e-01
- preferEC -0.454 0.378 -1.203 2.3e-01
- preferPP -0.181 0.336 -0.539 5.9e-01

多元线性回归模型结果。

12.9 共培养的最终比例

我们使用ANOVA检验来揭示每种碳源中三种共培养的最终比例的差异。由于包含多重比较,使用”BH”方法对p值进行了调整。

aov_p <- compare_means(ratio1 ~ ratio0,
                       group.by = "carbon_id",
                       data=merged,
                       method = "anova",
                       p.adjust.method = "BH") %>%
  arrange(p.adj) %>%
  mutate(p.adj.signif = cut(p.adj,breaks = c(0,0.01,0.05,1),labels = c("**","*","ns"))) %>%
  left_join(carbon_prefer)

ANOVA检验的显著性在图2A中可视化,并在图2B和C中给出了显著和非显著结果的五个示例。此外,图2S中提供了71种不同碳源的所有检验结果。

12.10 图2A: 最终比例ANOVA检验p值的密度分布

p.cutoff <- 0.05
p1 <- ggplot(aov_p,aes(p.adj)) +
  # geom_histogram(bins=30) +
  geom_line(stat = "density",lwd=1) +
  geom_density(lwd=0,color=NA,fill="lightblue") +
  geom_vline(xintercept = p.cutoff,lwd=1,lty="dashed",color="firebrick") +
  labs(x="P.adj",y="密度")+
  geom_text(x=0.06,y=0,label=p.cutoff,
            vjust="top",
            hjust="left",
            color="firebrick")

p2 <- ggplot(aov_p, aes(p.adj.signif,fill=prefer)) + geom_bar() +
  labs(x="调整后p值的显著性",y="频数") +
  # geom_text(aes(label=Freq),vjust=0,nudge_y = 1) +
  scale_fill_discrete(breaks=c("None","EC","PP"),labels=c("无","大肠杆菌","铜绿假单胞菌"),name="偏好性") +
  theme(legend.text = element_text(face="italic"),
        legend.position = c(0.65,0.7))

library(grid)
vp <- viewport(width=0.3,height=0.6,x=0.7,y=0.5)
pushViewport(vp)

print(p1)
print(p2,vp=vp)

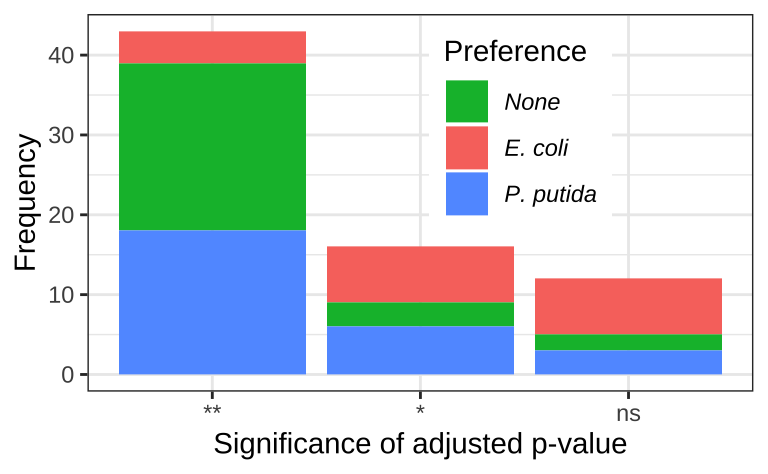

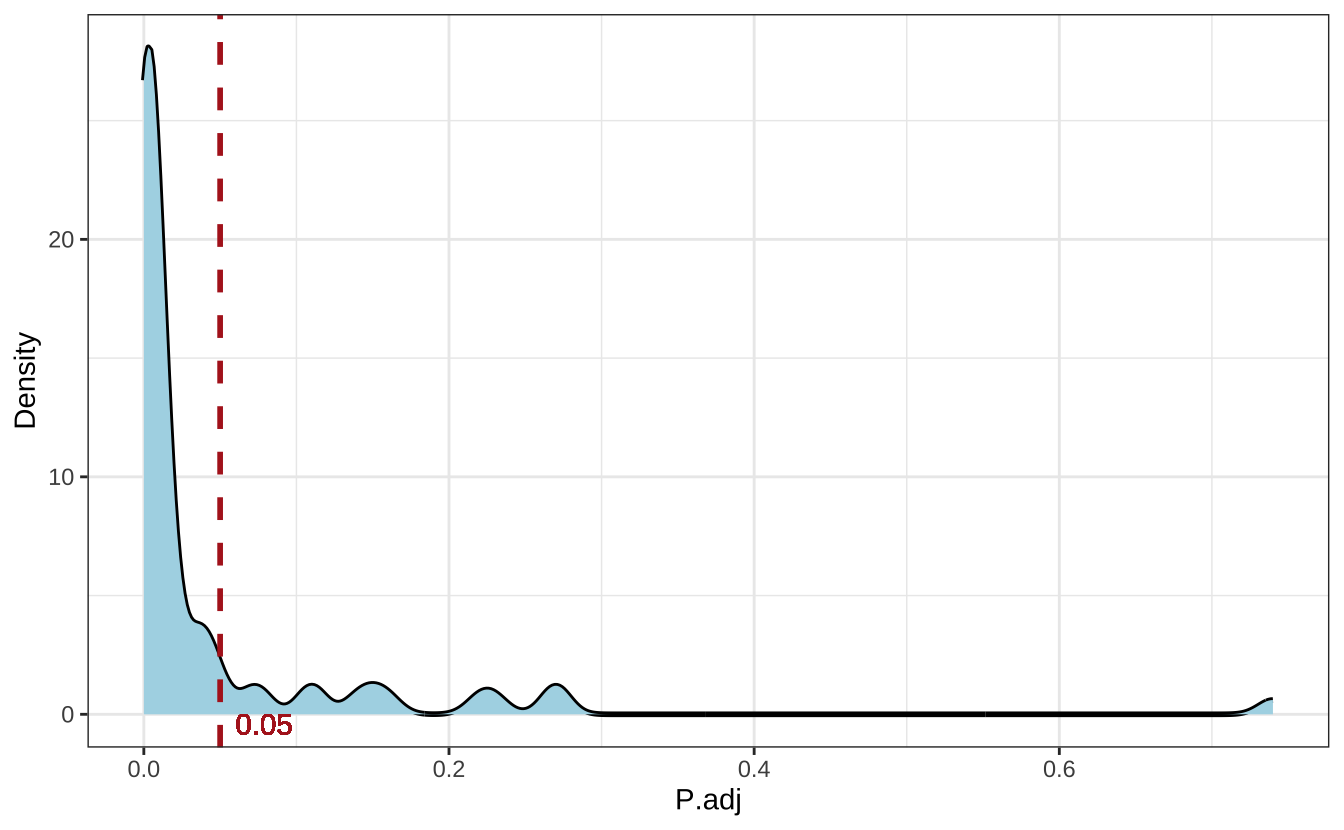

图2A. 所有碳源中检验最终比例三种共培养是否不同的调整后p值(ANOVA)的密度分布。X轴表示调整后的p值,垂直线表示p值截断值(0.05)的位置。插图:柱状图显示调整后p值显著性的频数(**,p<0.01,*,p<0.05,ns,p≥0.05)。在柱状图中,频数按碳源偏好性着色。
#ggsave("ratio/figures/figure 2A.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)

12.11 图2B,C: 显著/非显著结果的示例

merged$ratio0 <- relevel(merged$ratio0, "less")

carbon_name_labeller <- function(x){
  name_of <- carbon_name$carbon_source
  names(name_of) <- carbon_name$carbon_id
  return(as.character(name_of[x]))
}
selected_significant_carbon_id <- c(29,32,36,39,46)
selected_nonsignificant_carbon_id <- c(3,4,12,15,53)
p1 <- ggplot(
  data=filter(merged,carbon_id %in% selected_significant_carbon_id) %>%
    left_join(aov_p),
  mapping = aes(ratio0,ratio1,color=prefer))
p2 <- ggplot(
  data=filter(merged,carbon_id %in% selected_nonsignificant_carbon_id) %>%
    left_join(aov_p),
  mapping = aes(ratio0,ratio1,color=prefer))

plots <- lapply(list(p1,p2),function(x){
  x + geom_boxplot() + geom_jitter() +
    geom_text(aes(x="equal", y=0.15,label= paste("p.adj=",p.adj,sep = "")),check_overlap = T,size=3,show.legend = FALSE) +
    geom_text(aes(x="less",y=.65,label=carbon_id),color="grey",size=3) +
    facet_wrap(~carbon_id,
               ncol=5,
               labeller = labeller(carbon_id=carbon_name_labeller)) +
    # stat_compare_means(method="aov") +
    scale_x_discrete(breaks=c("less","equal","more"),labels=c("1:1000","1:1","1000:1")) +
    theme(axis.text.x = element_text(angle = 60, hjust = 1,vjust = 1)) +
    scale_color_discrete(breaks=c("None","EC","PP"),labels=c("无","大肠杆菌","铜绿假单胞菌"),name="偏好性")+
    theme(legend.text = element_text(face="italic")) +
    labs(x="",y="最终比例 (EC/PP)")
})

plot_grid(plotlist = plots,ncol=1,labels=c("B","C"))
#ggsave("ratio/figures/figure 2.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)

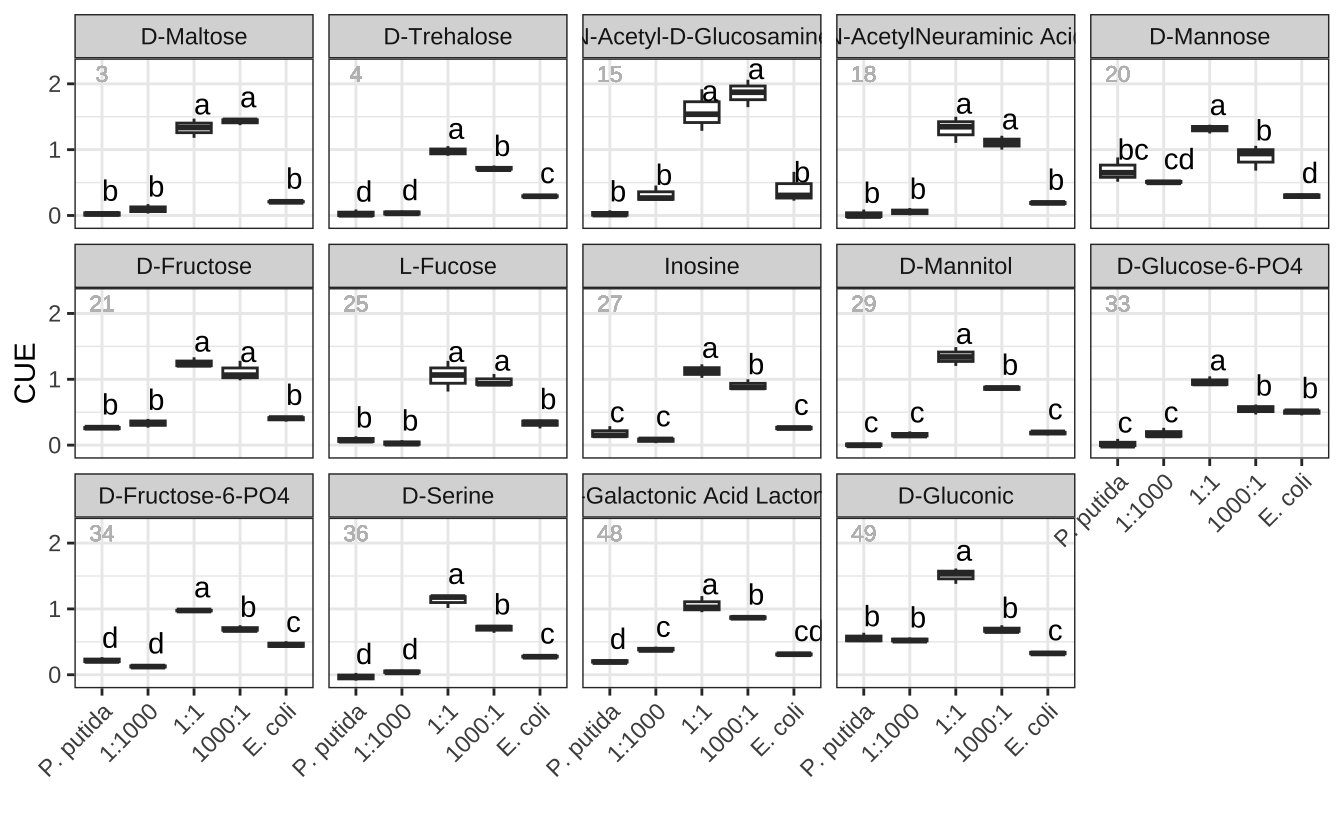

Figure 12.5: （原文图 2B,C）共培养的最终比例。最终比例显著结果(B)或非显著结果(C)的示例。每个子图上方的标签表示碳源。

12.12 图 S2: 所有培养的最终比例

最终比例的完整图示。

ggplot(merged %>% left_join(aov_p),aes(ratio0,ratio1,color=prefer)) + geom_boxplot() +
  geom_text(aes(x="less",y=.75,label=paste0(carbon_id,"(p=",p.adj,")")),color="grey",vjust=1,hjust="inward",size=2.25,show.legend = F) + ylim(NA, 1) +
  # ggpubr::stat_compare_means(method="aov",label="p.signif") +
  facet_wrap(~carbon_id) +
  # geom_jitter() +
  # geom_text(aes(x="equal", y=0.5,label= p.adj),check_overlap = T, data=aov_p,inherit.aes = FALSE,size=3) +
  # scale_y_log10(breaks=c(0.001,0.01,0.1,1,10),labels=c("0.001","0.01","0.1","1","10")) +
  xlab("") + ylab("最终比例 (EC/PP)") +
    scale_x_discrete(breaks=c("less","equal","more"),labels=c("1:1000","1:1","1000:1")) +
    theme(axis.text.x = element_text(angle = 60, hjust = 1,vjust = 1)) +
    scale_color_discrete(breaks=c("None","EC","PP"),labels=c("无","大肠杆菌","铜绿假单胞菌"),name="偏好性")+
    theme(legend.text = element_text(face="italic")) +
  theme(axis.text.x = element_text(angle = 90,hjust = 1,vjust = 0.5),
      legend.position = "top",
      legend.direction = "horizontal",
      strip.background = element_blank(),  # 移除分面标签 - "strip"
      strip.text = element_blank())
#ggsave("ratio/figures/figure S2.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.6: （原文图 S2）所有培养的最终比例。

12.13 图 3. 碳源偏好性克服初始比例

plots <- lapply(c("EC","PP"),function(x){
  d <- biolog_mono_24h %>%
    left_join(carbon_name) %>%
    filter(prefer == x)
  ggplot(d,aes(carbon_source,A590,fill=species)) +
    geom_boxplot() +
    labs(y="CUE",x="") +
    # coord_flip() +
    theme(legend.position = c(0.5,0.9),
          legend.direction = "horizontal",
          legend.text = element_text(face = "italic"),
          legend.title = element_blank(),
          axis.text.x = element_text(angle = 60, hjust = 1,vjust = 1))
})
ratio0_labeller <- function(x){
  name_of_ratio0 <- c("P. putida","1:1000","1:1","1000:1","E. coli")
  names(name_of_ratio0) <- c("none","less","equal","more","all")
  return(as.character(name_of_ratio0[x]))
}

prefer_labeller <- function(x){
  name_of_prefer <- c("None","E. coli","P. putida")
  names(name_of_prefer) <- c("None","EC","PP")
  return(as.character(name_of_prefer[x]))
}

p1 <- ggplot(merged,aes(x=prefer,y=ratio1)) +
  geom_boxplot() +
  facet_wrap(~ratio0,
             labeller = labeller(ratio0 = ratio0_labeller)) +
  scale_x_discrete(breaks=c("None","EC","PP"),labels=c("None","E. coli","P. putida")) +
  theme(axis.text.x = element_text(face = "italic",
                                   angle = 60,
                                   hjust = 1,
                                   vjust = 1)) +
  stat_compare_means(method="wilcox.test",comparisons = list(c("EC","None"),c("None","PP"),c("EC","PP")),size=3) +
  labs(x="Carbon Source Preference", y="Final Ratio (EC/PP)") +
  ylim(c(NA,1.5))

prefer_labeller <- function(x){
  name_of_prefer <- c("None","E. coli","P. putida")
  names(name_of_prefer) <- c("None","EC","PP")
  return(as.character(name_of_prefer[x]))
}

p2 <- ggplot(merged,aes(x=ratio0,y=ratio1)) +
  geom_boxplot() +
  facet_wrap(~prefer, labeller = labeller(prefer = prefer_labeller)) +
  theme(strip.text = element_text(face = "italic")) +
  stat_compare_means(method="wilcox.test",comparisons = list(c("less","equal"),c("equal","more"),c("less","more")),size=3) +
  scale_x_discrete(breaks=c("less","equal","more"),labels=c("1:1000","1:1","1000:1")) +
    theme(axis.text.x = element_text(angle = 60, hjust = 1,vjust = 1)) +
  labs(x="初始比例 (EC/PP)", y="最终比例 (EC/PP)") +
  ylim(c(NA,1.5))
plot_grid(plot_grid(plots[[1]] + ylim(NA,0.7),
                    plots[[2]]+ ylim(NA,2),
                    labels = "AUTO",
                    rel_widths  = c(18,27),
                    ncol = 2,align = "h"),
          plot_grid(p1,p2,labels = c("C","D"),ncol = 2),
          ncol = 1,
          rel_heights = c(5,4))
#ggsave("ratio/figures/figure 3.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)

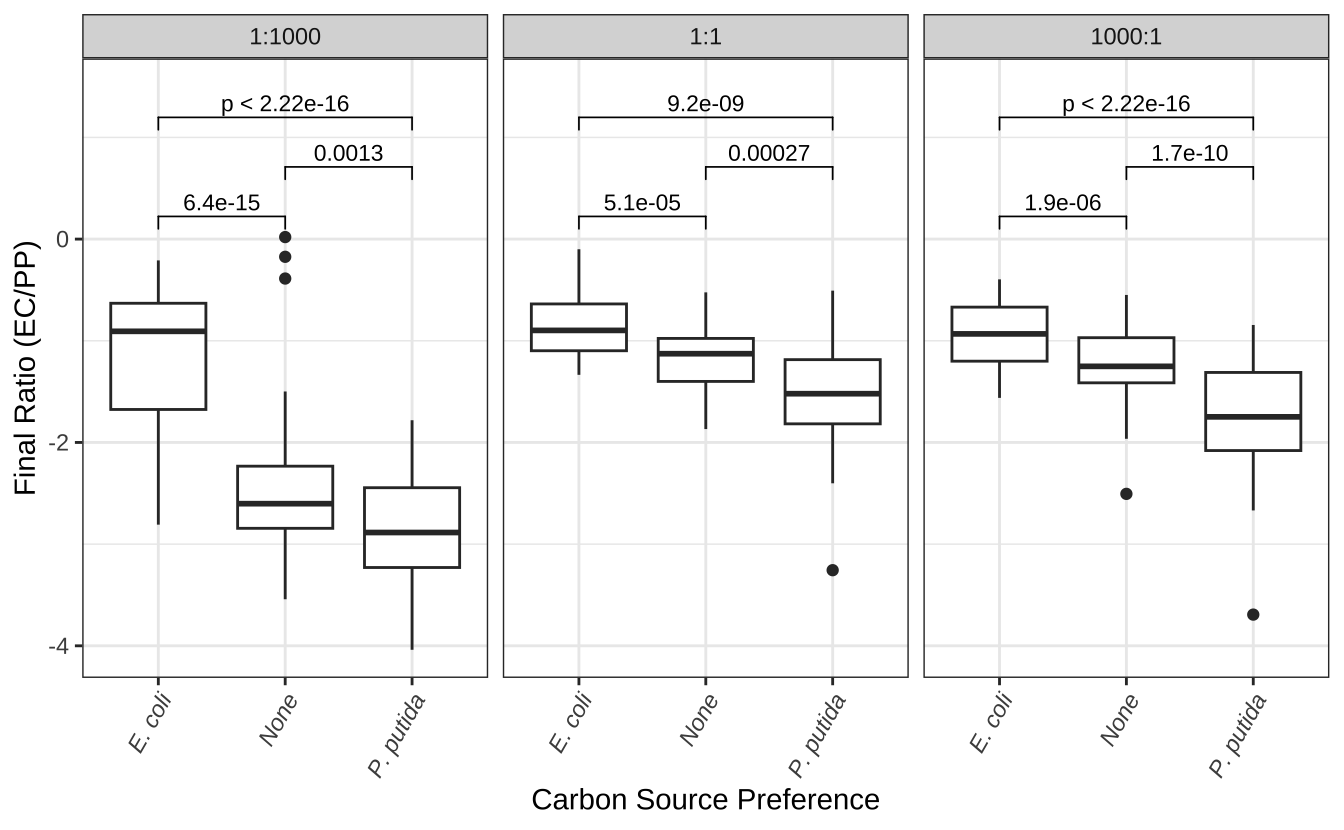

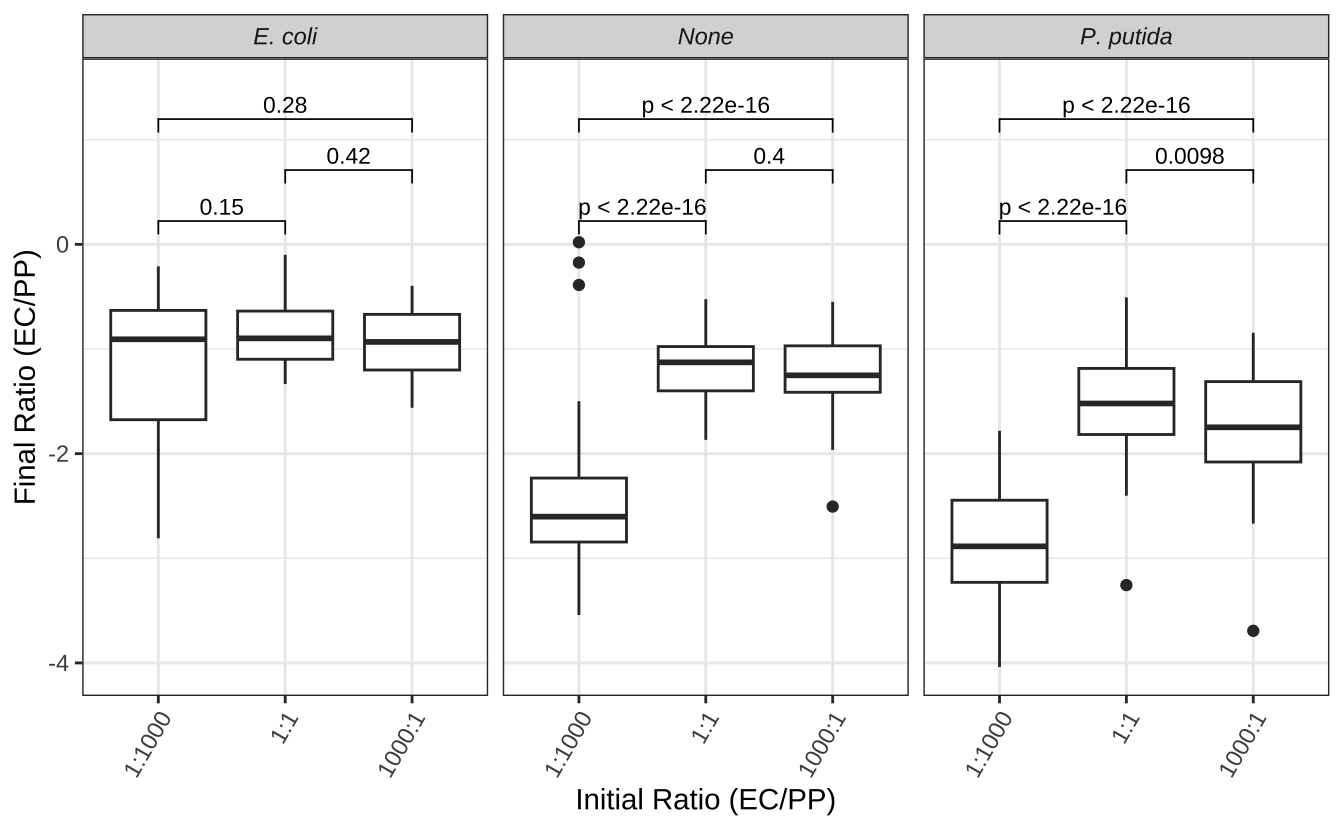

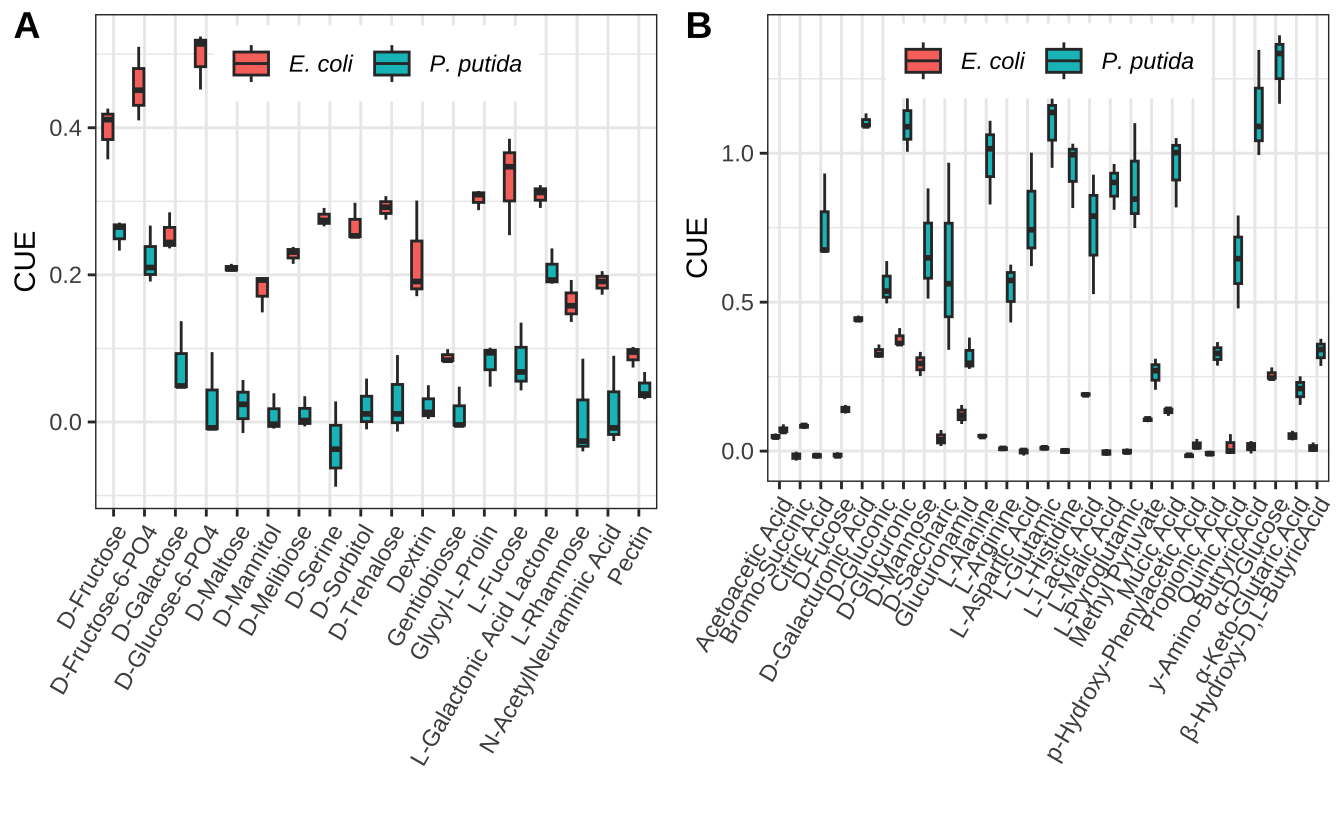

Figure 12.7: （原文图 3）碳源偏好性。

12.14 初始比例调控碳源利用谱

12.14.1 图 S3. 单培养和共培养的比较

p_cue <- ggplot(biolog_24h,aes(ratio0,A590)) +
  geom_boxplot() +
  geom_hline(aes(yintercept = median(A590)),lty=2,color="firebrick") +
  scale_x_discrete(breaks=c("none","less","equal","more","all"),
                  labels=c("P. putida","1:1000","1:1","1000:1","E. coli")) +
  theme(axis.text.x = element_text(angle = 60, hjust = 1,vjust = 1)) +
  geom_text(aes(ratio0,y,label=y),
            inherit.aes = F,
            data = biolog_24h %>% group_by(ratio0) %>%
              summarise(y=median(A590)),
            vjust=-0.3) +
  labs(x="Initial Ratio (EC/PP)",y="CUE")
# 在PCA中添加置信区间
add_ellipase <- function(p, x="PC1", y="PC2", group="group",
                         ellipase_pro = 0.95,
                         linetype="dashed",
                         colour = "black",
                         lwd = 1,...){
  obs <- p$data[,c(x,y,group)]
  colnames(obs) <- c("x", "y", "group")
  ellipse_pro <- ellipase_pro
  theta <- c(seq(-pi, pi, length = 50), seq(pi, -pi, length = 50))
  circle <- cbind(cos(theta), sin(theta))
  ell <- plyr::ddply(obs, 'group', function(x) {
    if(nrow(x) <= 2) {
      return(NULL)
    }
    sigma <- var(cbind(x$x, x$y))
    mu <- c(mean(x$x), mean(x$y))
    ed <- sqrt(qchisq(ellipse_pro, df = 2))
    data.frame(sweep(circle %*% chol(sigma) * ed, 2, mu, FUN = '+'))
    })
  names(ell)[2:3] <- c('x', 'y')

  ell <- plyr::ddply(ell, plyr::.(group) , function(x) x[chull(x$x, x$y), ])
  p <- p + geom_polygon(data = ell,
                        aes(x=x,y=y,group = group),
                        colour = colour,
                        linetype=linetype,
                        lwd =lwd,
                        inherit.aes = F,
                        ...)
  return(p)
}
library(vegan)
pca <- rda(t(M_A590_24h))
percent_var <- pca$CA$eig/pca$tot.chi
df <- scores(pca)$sites  %>%
  as.data.frame() %>%
  tibble::rownames_to_column(var="sample") %>%
  separate(sample,c("ratio0","rep"),sep="-",remove = F)
df$ratio0 <- factor(df$ratio0,
  levels = c("none","less","equal","more","all"),
  labels = c("P. putida","1:1000","1:1","1000:1","E. coli"))
group <- cutree(hclust(dist(t(M_A590_24h))),k=3)
clustered_group <- as.data.frame(group) %>% tibble::rownames_to_column(var = "sample")
df = df |>  left_join(clustered_group)
p <- ggplot(df, aes(PC1,PC2,label=ratio0,color=ratio0))+
  geom_point(size=3,show.legend = F) +
  scale_color_manual(values = brewer.pal(9,"YlOrRd")[5:9],name="初始比例")+
  xlab(paste0("PC1: ", round(percent_var[1] * 100), "% 方差")) +
  ylab(paste0("PC2: ", round(percent_var[2] * 100), "% 方差")) +
 annotate("text", x = -.125, y = .9, label = "铜绿假单胞菌",
           colour = brewer.pal(9,"YlOrRd")[5], size = 4, fontface = "italic") +
  annotate("text", x = -.25, y = .25, label = "1:1000", size = 4,
           colour = brewer.pal(9,"YlOrRd")[6]) +
  annotate("text", x = -.8, y = -1, label = "大肠杆菌",
           colour = brewer.pal(9,"YlOrRd")[9], size = 4, fontface = "italic") +
  annotate("text", x = 1, y = -.2, label = "1:1", size = 4,
           colour = brewer.pal(9,"YlOrRd")[7]) +
  annotate("text", x = .45, y = -.35, label = "1000:1", size = 4,
           colour = brewer.pal(9,"YlOrRd")[8])

p_pca <- add_ellipase(p,alpha=0.1,show.legend = F,lwd=1)
plot_grid(p_cue,p_pca,ncol = 2,labels = c("A","B"),rel_widths = c(7,10))
#ggsave("ratio/figures/figure 4.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)

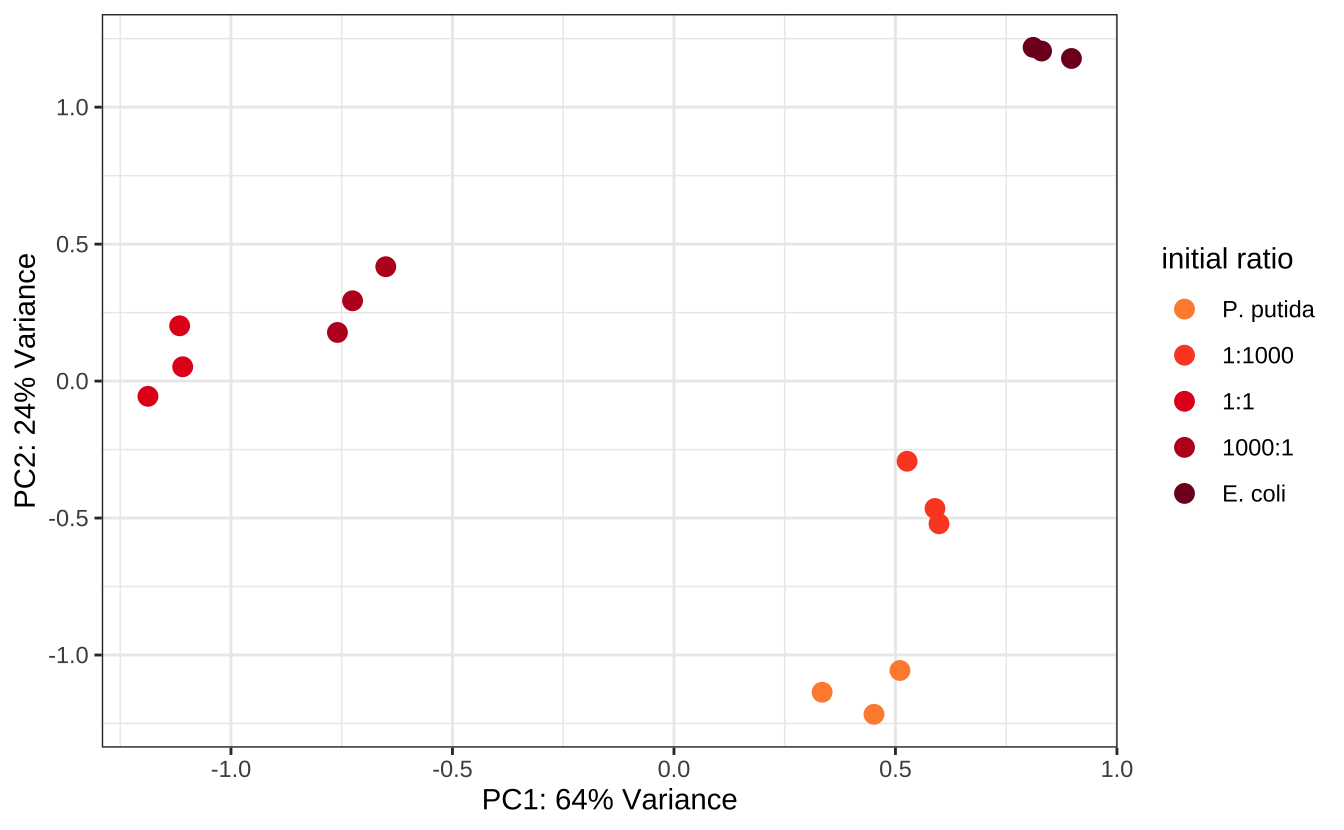

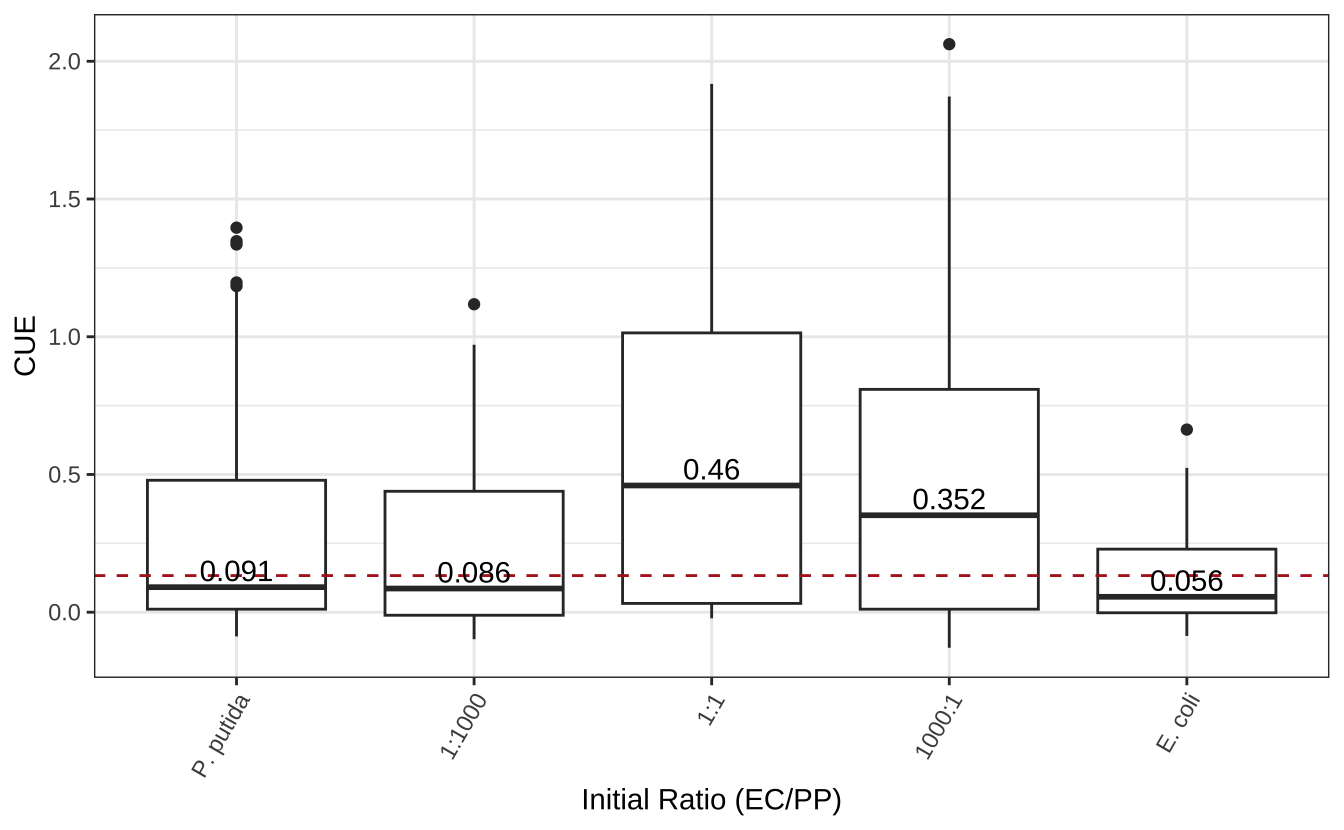

Figure 12.8: （原文图 S3）单培养和共培养的比较。(A)箱线图。数字显示每种培养的中位数,水平线显示所有培养的平均值。(B)碳源利用谱的PCA分析。椭圆代表聚类的95%置信区间。

12.15 图4: 初始比例影响共培养的CUE

anno_carbon_group <- carbon_group %>%
  left_join(carbon_prefer) %>%
  column_to_rownames(var="carbon_id") %>%
  rename(Usage = usage, Preference = prefer)
colnames(M_A590_24h) <- rep(c("E. coli","1:1","1:1000","1000:1","P. putida"),each=3)
p_heatmap <- pheatmap(t(M_A590_24h),
         annotation_col = anno_carbon_group[c(2,1)],
         cutree_cols = 3,
         # cutree_rows = 3,
         fontsize_col = 6,
         silent = T)

图5. 九种U2碳源培养物的CUE(A)和最终比例(B)(从左到右,从上到下)。

biolog_24h_U2 <- left_join(biolog_24h,carbon_group) %>% filter(usage=="U2")
hsd_group <- lapply(unique(biolog_24h_U2$carbon_id), function(x){
  m <- aov(A590~ratio0,data=filter(biolog_24h_U2,carbon_id==x))
  library(agricolae)
  g <- HSD.test(m,"ratio0",group=TRUE)$groups
  d <- rownames_to_column(g,var="ratio0")
  d$carbon_id <- x
  return(d[-2])
})
hsd_group <- do.call("rbind",hsd_group)
hsd_group$ratio0 <- factor(hsd_group$ratio0,
                           levels = c("none","less","equal","more","all"))
# 在箱线图顶部添加组标签
hsd_group <- biolog_24h_U2 %>% group_by(ratio0,carbon_id) %>% summarize(q3=quantile(A590)[3]) %>% left_join(hsd_group)
u2_p1 <- ggplot(biolog_24h_U2, aes(ratio0,A590)) +
  geom_boxplot() +
  geom_text(aes(x="none",y=max(A590)*1.1,label=carbon_id),color="grey",vjust=1,size=3,show.legend = F) +
  geom_text(aes(x=ratio0,y=q3,label=groups),show.legend = F,
            data = hsd_group,inherit.aes = F,
            vjust=0,nudge_y = .2,hjust=0) +
  facet_wrap(~carbon_id,ncol=5,
             labeller = labeller(carbon_id=carbon_name_labeller)) +
  scale_x_discrete(breaks=c("none","less","equal","more","all"),labels=c("P. putida","1:1000","1:1","1000:1","E. coli")) +
  scale_y_continuous(breaks = c(0,1,2)) +
  labs(x="",y="CUE") +
  # ggpubr::stat_compare_means(method="aov",label="p.format") +
  theme(axis.text.x = element_text(angle = 45,hjust = 1,vjust = 1),
        legend.position = "top",
        legend.direction = "horizontal"
  )
plot_grid(ggplotify::as.ggplot(p_heatmap),
          u2_p1,
          labels = "AUTO",ncol=1)
#ggsave("ratio/figures/figure 5.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)

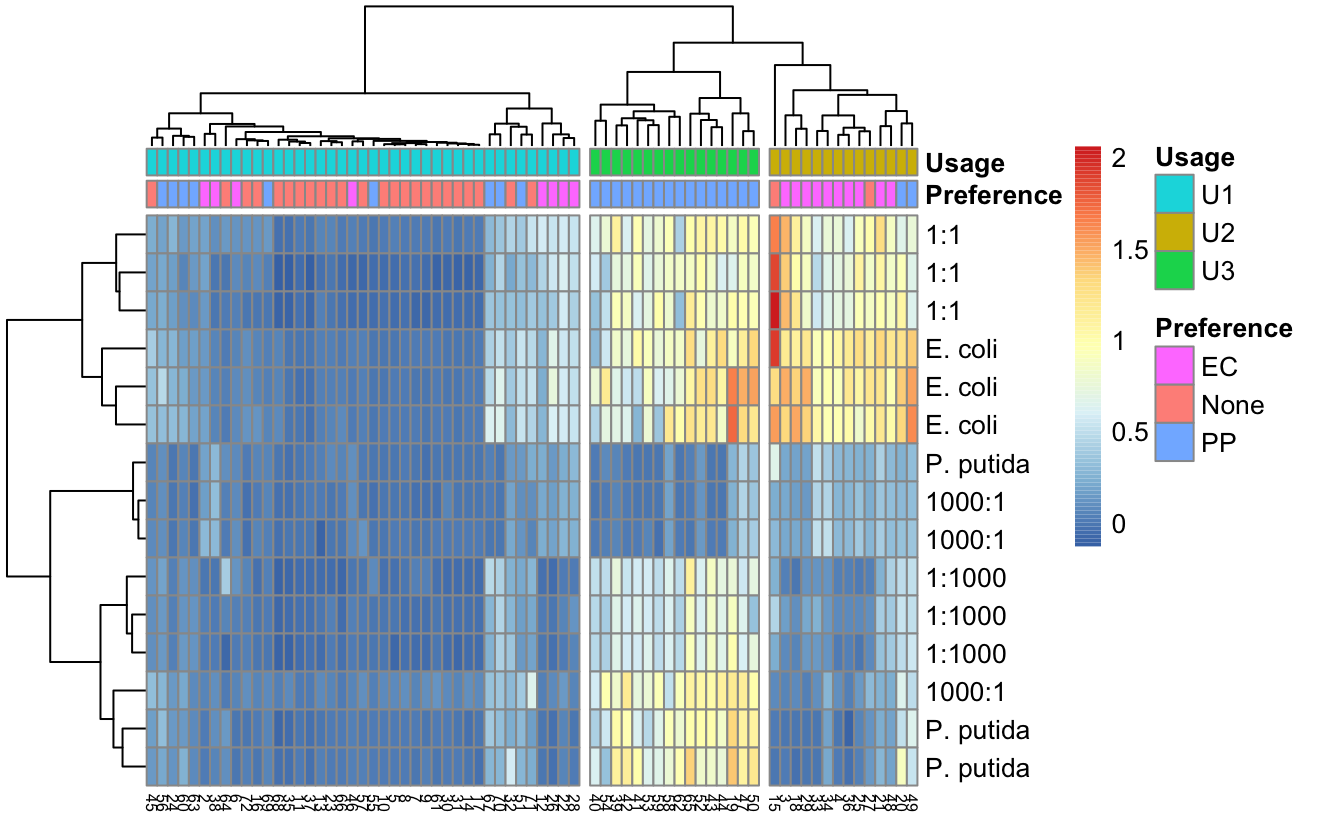

Figure 12.9: （原文图 4）初始比例调控共培养的碳源利用谱。(A)按使用组对碳源进行聚类。在热图中,顶部的条带表示碳源类型,底部的数字表示碳源ID,右侧给出了实验重复。图例条表示CUE值的范围。(B)14种U2碳源的单培养和共培养的CUE(从左到右,从上到下)。x轴表示培养条件,y轴表示CUE。进行了ANOVA和Tukey多重比较。箱线图上的文本表示不同培养物之间是否观察到显著差异。

12.16 图 S4: 所有组合的CUE结果

与图4相关。

ggplot(biolog_24h, aes(ratio0,A590)) +
  geom_boxplot() +
  geom_text(aes(x="less",y=max(A590)*1.1,label=carbon_id),
            color="grey",
            vjust=1,size=3,show.legend = F) +
  facet_wrap(~carbon_id,ncol=9) +
  scale_x_discrete(breaks=c("none","less","equal","more","all"),labels=c("P. putida","1:1000","1:1","1000:1","E. coli")) + xlab(NULL) +
  scale_y_continuous(breaks = c(0,1,2),name = "CUE") +
  theme(axis.text.x = element_text(angle = 90,hjust = 1,vjust = 0.5),
        legend.position = "top",
        legend.direction = "horizontal",
        strip.background = element_blank(),  # 移除分面标签 - "strip"
        strip.text = element_blank())
#ggsave("ratio/figures/figure S3.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.10: 图 S4: 所有组合的CUE结果。

12.17 初始比例调控社会互作

社会互作模式按图1所述计算。

12.17.1 图5. 共培养中的社会互作

plots_proportion <- lapply(list(c("ratio0","social_type"),c("ratio0","usage","social_type"),c("ratio0","prefer","social_type")), function(x){
  df <- merged_qpcr %>%
    group_by(.dots=x) %>%
    summarise(count=n()) %>%
    mutate(Proportion=count/sum(count)) %>%
    mutate(label=paste(round(Proportion*100),"%",sep=""))
  ggplot(df,aes_string("ratio0","Proportion",fill="social_type")) +
    geom_col() +
    geom_text(aes(label=label),color="white",
              position = position_stack(vjust=0.5),
              size=3) +
    scale_fill_manual(values = c("+"="firebrick","-"="royalblue","unresolved"="grey"),
                     labels = c("Unresolved", "Positive", "Negative"),
                     name="Interaction") +
   theme(legend.position = "none",
          legend.title = element_text(face="bold")) +
    scale_x_discrete(breaks=c("less","equal","more"),labels=c("1:1000","1:1","1000:1")) +
  theme(axis.text.x = element_text(angle = 60,hjust = 1,vjust = 1)  ) +
    xlab("")
})

legend <- get_legend(plots_proportion[[1]] + theme(legend.position = "right"))
plots_population <- lapply(c("EC","PP"),function(x){
  ggplot(merged_qpcr,aes_string("social_type",x)) + geom_boxplot() +
    stat_compare_means(method = "wilcox.test",comparisons = list(c("unresolved","+"),c("-","+")),size=3)+
    theme(axis.text.x = element_text(angle = 60,hjust = 1,vjust = 1)  ) +
    scale_x_discrete(labels = c("unresolved","positive","negative"),
                     breaks = c("unresolved","+","-")) +
    labs(x="")
})
plot_grid(plot_grid(plots_proportion[[1]],
                    plots_proportion[[2]]+ facet_wrap(~usage ),
                    legend,
                    rel_widths = c(1.8,4,1.5),
                    ncol = 3,
                    labels = c("A","B","")),
          plot_grid(plots_proportion[[3]] + facet_wrap(~prefer,
                                                       labeller = labeller(prefer = prefer_labeller)) +
                      theme(strip.text = element_text(face = "italic")),
                    plots_population[[1]] + labs(y="大肠杆菌数量"),
                    plots_population[[2]] + labs(y="铜绿假单胞菌数量"),
                    labels = c("C","D","E"),
                    ncol = 3,
                    rel_widths = c(5,2,2)),
          ncol = 1)
#ggsave("ratio/figures/figure 5-1.tiff",path="ratio/figures")
Figure 12.11: （原文图 5-1）基于细菌数量定义的社会互作。主要结论是两种方法定义的社会互作是可比的。与我们模型的结果一致,以’1:1’和’1000:1’共培养的两个物种比以’1:1000’共培养更容易协同利用碳源(A)。此外,’1:1000’共培养具有最多的负互作,无论碳源类型如何(A-C)。在传统模型中,’1:1’和’1000:1’共培养也没有负互作,尽管正互作比例较少(B)。然而,传统方法定义的未解析互作更多(A)。我们发现正互作中大肠杆菌的数量与未解析互作中的数量没有显著差异(D)。结果表明,与传统方法相比,我们的方法可以更准确地定义物种的互作行为。

12.18 图5-1. 基于单培养和共培养两种菌的绝对密度定义的社会互作

12.19 图 S5: 所有组合的互作模式

与图5相关。

left_join(biolog_coculture_24h,social) %>%
  ggplot(aes(ratio0,A590,color=social_type)) +
    geom_boxplot() +
    geom_text(aes(x="less",y=max(A590)*1.1,label=carbon_id),vjust=1,color="grey",size=3) +
    facet_wrap(~carbon_id,ncol=9) +
    scale_color_manual(values = c("+"="firebrick","-"="royalblue","unresolved"="grey"),
                      labels = c("negative", "positive","unresolved"),
                     name="Interaction: ") +
    scale_y_continuous(breaks = c(0,1,2)) +
    scale_x_discrete(breaks=c("less","equal","more"),labels=c("1:1000","1:1","1000:1")) +
    labs(x="",y="CUE") +
    theme(axis.text.x = element_text(angle = 90,hjust = 1,vjust = 0.5),
          legend.position = "top",
          strip.background = element_blank(),  # 移除分面标签 - "strip"
          strip.text = element_blank())
#ggsave("ratio/figures/figure S4.tiff",path="ratio/figures")
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.12: 图 S5: 所有组合的互作模式。

12.20 图6. U2碳源利用中的代谢耦合

knitr::include_graphics("ratio/figures/interaction_model.png")
Figure 12.13: （原文图 6）U2碳源利用中的代谢耦合。大肠杆菌单培养(A)和铜绿假单胞菌单培养(B)对U2碳源的利用效率都很低。在大肠杆菌数量较少的共培养中,由于大肠杆菌是限制代谢物流动的瓶颈,难以建立代谢耦合(C)。当大肠杆菌与铜绿假单胞菌数量相当时,可以建立代谢流,导致U2碳源的高CUE(D)。

12.21 补充数据

12.21.1 生长曲线

# ggplot中显示回归曲线的公式和R^2值
source("ratio/functions/ggplot_smooth_func.R")
files <- list.files(path="ratio/data/BIOLOG/",pattern = "*.csv",full.names = T)
read_BIOLOG <- function(f){
  A590 <- read.csv(f,header = F,skip=18,nrows = 8)
  A590 <- t(A590[,1:9]) %>% as.matrix() %>% as.vector()
  A750 <- read.csv(f,header = F,skip=28,nrows = 8)
  A750 <- t(A750[,1:9]) %>% as.matrix() %>% as.vector()
  time <- as.numeric(str_extract(str_extract(f,"\\d+h"),"\\d+"))
  if (str_detect(f,"\\d++\\.\\d+")) ratio0 <- str_extract(f,"\\d++\\.\\d+")
  if (str_detect(f, "(ec|pp)")) ratio0 <- str_extract(f, "(ec|pp)")
  if (str_detect(f,"-[1-3]\\D")) plate <- str_extract(str_extract(f,"-[1-3]\\D"),"[1-3]")

data.frame(plate=plate, carbon_id=1:72,time=time,ratio0=ratio0,A590=A590,A750=A750)
}

biolog <- do.call("rbind", lapply(files, read_BIOLOG))
biolog$ratio0 <- factor(biolog$ratio0,
                        levels = c("pp","1.1000","1.1","1000.1","ec"),
                        labels = c("P. putida","1:1000","1:1","1000:1","E. coli"))
biolog2 <- biolog %>%
  group_by(plate,ratio0,time) %>%
  mutate(A590=A590-A590[carbon_id==1],A750=A750-A750[carbon_id==1]) %>%   # 将阴性对照设为零
  filter(carbon_id!=1) %>%
  ungroup()

df_750 <- biolog2 %>% group_by(time,ratio0,carbon_id) %>%
  summarise(mean=mean(A750),std=sd(A750))
df_590 <- biolog2 %>% group_by(time,ratio0,carbon_id) %>%
  summarise(mean=mean(A590),std=sd(A590))
df_590 <- df_590[!(df_590$time=="28" ),]
df_750 <- df_750[!(df_750$time=="28" ),]

dat <- df_590[853:1207, 1:5] #hour 24
dat$time <- 0; dat$mean <- 0; dat$std <- 0 #change 24h to 0h
dat$ratio0 <- factor(dat$ratio0)
da0_590 <- rbind(df_590, dat)
da0_750 <- rbind(df_750, dat)
rm(dat)
ggplot( da0_750,aes(time,mean,color=ratio0,shape=ratio0,ymin=mean-std,ymax=mean+std)) +
  geom_line(size=0.6) +
  geom_errorbar(width=0.1) +
  geom_point(size=0.8) +
  xlab("Time (h)") + ylab("A750") + geom_text(aes(x=2,y=max(mean)*1.1,label=carbon_id),vjust=1,color="grey",size=4)+
  facet_wrap(~carbon_id,ncol=9) + scale_y_continuous(breaks = c(0,0.5,1)) +
  scale_x_continuous(breaks = seq(0, 24, by = 8),
                     labels = seq(0, 24, by = 8),
                     limits = c(0, 25))+
  theme(axis.text = element_text(angle = 0,hjust = 1,vjust = 0.5, size = 10),
        axis.title = element_text(size = 15), ##time(h)
        legend.text = element_text(size = 15), ##1:1, 1:1000
        legend.title= element_blank(), ##ratio0
        #legend.key = element_rect(size = 10),
        legend.position = "top",
        strip.background = element_blank(),  # 移除分面标签 - "strip"
        strip.text = element_blank())
Figure 12.14: （原文图 S6）A750生长曲线。
ggplot( da0_590,aes(time,mean,color=ratio0,shape=ratio0,ymin=mean-std,ymax=mean+std)) +
  geom_line(size=0.6) +
  geom_errorbar(width=0.1) +
  geom_point(size=0.8) +
  xlab("Time (h)") + ylab("A590") + geom_text(aes(x=2,y=max(mean)*1.1,label=carbon_id),vjust=1,color="grey",size=4)+
  facet_wrap(~carbon_id,ncol=9) + scale_y_continuous(breaks = c(0,1,2)) +
  scale_x_continuous(breaks = seq(0, 24, by = 8),
                     labels = seq(0, 24, by = 8),
                     limits = c(0, 25))+
  theme(axis.text = element_text(angle = 0,hjust = 1,vjust = 0.5, size = 10),
        axis.title = element_text(size = 15), ##time(h)
        legend.text = element_text(size = 15), ##1:1, 1:1000
        legend.title= element_blank(),## 移除ratio0
        #legend.key = element_rect(size = 10),
        legend.position = "top",
        strip.background = element_blank(),  # 移除分面标签 - "strip"
        strip.text = element_blank())

#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.15: （原文图 S7）A590生长曲线。

12.21.2 A590和A750的相关性

ggplot(biolog, aes(A590,A750)) +
  geom_point(alpha=1/3) +
  geom_smooth(method = "lm",size=1)+
  stat_smooth_func(geom = "text",method = "lm",parse=T, hjust=0,xpos = 0.25,ypos = 1.4, show.legend = F)

#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.16: （原文图 S8）A590(x轴)和A750(y轴)之间的相关性。

12.21.3 单细胞CUE

mono_data <- mono_data %>% rename( species = Target.Name, quantity = Quantity_mono) %>%  filter(carbon_id!=1) %>%
  ungroup()
mono_data$species <-factor(mono_data$species,
                        levels = c("PP","EC"),
                        labels = c("P. putida","E. coli"))
d <- merge( mono_data,biolog_mono_24h, by = c("plate", "species","carbon_id"),all=T)
d$LogCFU <- log10(d$quantity)
d2<- d[-c(4,74),]
ggplot(d2, aes(LogCFU,A590,color=species)) +
  geom_point(alpha=1/3,show.legend = F) +facet_wrap(.~species,scales = 'free_x' ) +
   xlab("Log10(Quantity)") + ylab("A590")+
  theme(strip.text = element_text(face = "italic"))+
  geom_smooth(method = "lm",size=1,show.legend = F) +
  stat_smooth_func_with_pval(geom = "text",method = "lm",parse=T, hjust=0,xpos=7.0,xpos2 =7.0,ypos=2.0,ypos2 = 1.75, show.legend = F)
#export::graph2ppt(file="ratio/figures.pptx",append=TRUE)
Figure 12.17: （原文图 S9）单培养中A590(y轴)和对数转换后的细胞数量(x轴)的相关性。左图,铜绿假单胞菌单培养;右图,大肠杆菌单培养。
